Shenzhen Honlynn Circuit Co., Ltd.

< >

A Turnkey Solution

Honlynn can provide high-quality PCB in expedited service to customers. The goal of Honlynn is to keep producing high-quality PCB, striving for higher-efficiency operations, as well as providing customers with the best products and services. Become an enterprise that combines technology and efficiency on the global market.

Standard PCB

Through-hole 2-64 layer PCB,HDI multilayer PCB FPC

PCB Type: Conventional, high frequency, flexible material, Metal base material

Material: FR4, PI, CU, Alu, Teflon, Isola, and Rogers

Surface technology: gold plating, tin spraying, silver plating, silver plating, nickel plating, palladium plating, thick gold

Delivery time: Up to 3-5 weeks

MOQ: ＞310Sq.In.

PCB Prototype

1-64 layers, HDI multilayer PCB, FPC

PCB Type: Flexible PCB

Material: FR4 PI CU Alu Teflon Isola Rogers

Surface technology: gold plating, tin spraying, silver plating, silver plating, nickel plating, palladium plating, thick gold

Delivery time: Up to 24 hours to 3 weeks

MOQ: ＞5PCS

PCB Assembly

PCBA Prototype, Batch SMT, FPC SMT

PCB prototype smt,Batch SMT,FPC smt

DIP: Full/partial turnkey assembly service, COB Services, PCBA Test Burn Aging Service, PCBA Box Assembly Service

Delivery time: 2 days to 5 weeks

MOQ: unlimited

Components

Component part procurement,All components purchased on behalf Component samples

Chip channel: original, agency, Made in China, import; Device: resistor, capacitance, inductance, terminal, Other

Hardware: Fe, Ag, cu, AI, electric wire other

Plastic: outer shell JUREN key other

Packing materials: box external packing Pattern printing other

Purchasing Lead Time：2 days to 5 weeks

Welcome to HL

Honlynn Industrial Holdings（HK） Limited Co., LTD was founded in Hong Kong in 2008 as a PCB broker. And Shenzhen Honlynn Circuit Co., LTD was established in 2014 (Production base). Our headquarters and factories are located in the Shenzhen Special Economic Zone, China. It is adjacent to the western maritime pastoral scenic area of Shenzhen City, only 20 minutes drive from Shenzhen International Airport, and borders the Guangzhou-Shenzhen Expressway in the east and the Yanjiang Expressway in the west. The company's production workshop covers an area of over 8000 square meters, with technical talents accounting for nearly 1/3 of the total. We are a high-tech enterprise dedicated to the R&D and production of high-precision multilayer circuit boards, fast boards, and special PCBs. Providing customers with one-stop services for rapid samples, medium to small batches, and mass production.

CORPORATE VIDEO

2008
Incorporation

8000m²

Production Shop

250000SF

monthly production capability

50000SF

Small Batch-type

Why Choose Us

100% product quality guaranteed HLPCB fully complies with the ISO 9001:2015 quality management system and has passed UL certification. All circuit boards are well tested before shipment.

Trusted by more than 17,000 Electronic Engineers

17,000+

More Than 8,000 Electronic Contract Customers

8,000+

100% product quality guaranteed HLPCB fully complies with the ISO 9001:2015 quality management system and has passed UL certification. All circuit boards are well tested before shipment.

10,000+

99.9%+DHL on time delivery 24-hour online customer service DHL delivery time reduced to only 3-5 days

99.9%+

Capabilities

Honlynn imports precision equipment and production lines, equipped with 36 process quality inspections, and the accuracy can meet a tolerance of 0.1mm. It can realize the whole process of production and shorten the deliv...

PCB process capability

1. Layers: 2-32 layers

2. Max.Board Size: 1200mm*625mm/47"*25"

3. Finished Board Thickness: 0.15mm--10.0mm/0.006"--0.4"

4. Finished Copper Thickness: 35um-420um/1OZ--12OZ

5. Min.Trace Width/Space: 0.075mm/0.075mm/0.003"/0.003"

6. Min.Hole Size: 0.1mm/0.004"

PCB process capability

1. Layers: 2-32 layers

2. Max.Board Size: 1200mm*625mm/47"*25"

3. Finished Board Thickness: 0.15mm--10.0mm/0.006"--0.4"

4. Finished Copper Thickness: 35um-420um/1OZ--12OZ

5. Min.Trace Width/Space: 0.075mm/0.075mm/0.003"/0.003"

6. Min.Hole Size: 0.1mm/0.004"

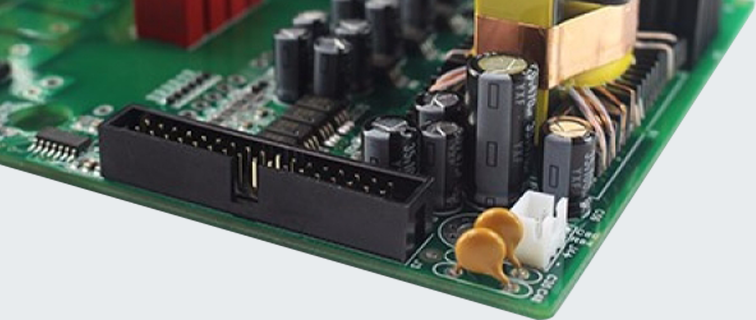

PCBA process capability

Lead Time: The delivery time of the prototype shall be 24 hours (6 hours at the earliest and expedited) and the delivery time of small-batch shall be 72 hours (24 hours at the earliest and expedited). The delivery time of small-batch shall be more than 5 days. All the time shall be calculated from the next day after all components, PCB and other materials are ready.

PCBA Capacity: SMT patch 4 million points/day, THT 500,000 points/day, 50-100 orders /day.

PCBA process capability

PCBA Capacity: SMT patch 4 million points/day, THT 500,000 points/day, 50-100 orders /day.

Rigid-Flex process capability

Poduct structure: 1+n+1; 1+1+n+1+1; 2+n+2/1+n+1, 1+1+n+1+1, 2+n+2/F+R, cu+F+cu, R+F+R+F+R, R+F+R/F+R, cu+F+cu, R+F+R+F+R, R+F+R

Number of layers: Rigid-flex PCB:≤18L/≤24L; FPC:≤10L/≤16L

Board thickness (mm): Rigid-flex board: 0.3-3.2/0.3-3.2; FPC: 0.06-0.35/0.06-0.35

Board size (mm): Rigid-flex PCB: 15*15 to 310*510/15*15 to 310*510; FPC: 5*15 to 310*510/5*15 to 310*510

Copper thickness (OZ): Maximum copper thickness of FR-4: Outer layer 2OZ, inner layer 2OZ/Outer layer 2OZ, inner layer 2OZ

Rigid-Flex process capability

Poduct structure: 1+n+1; 1+1+n+1+1; 2+n+2/1+n+1, 1+1+n+1+1, 2+n+2/F+R, cu+F+cu, R+F+R+F+R, R+F+R/F+R, cu+F+cu, R+F+R+F+R, R+F+R

Number of layers: Rigid-flex PCB:≤18L/≤24L; FPC:≤10L/≤16L

Board thickness (mm): Rigid-flex board: 0.3-3.2/0.3-3.2; FPC: 0.06-0.35/0.06-0.35

Board size (mm): Rigid-flex PCB: 15*15 to 310*510/15*15 to 310*510; FPC: 5*15 to 310*510/5*15 to 310*510

Copper thickness (OZ): Maximum copper thickness of FR-4: Outer layer 2OZ, inner layer 2OZ/Outer layer 2OZ, inner layer 2OZ

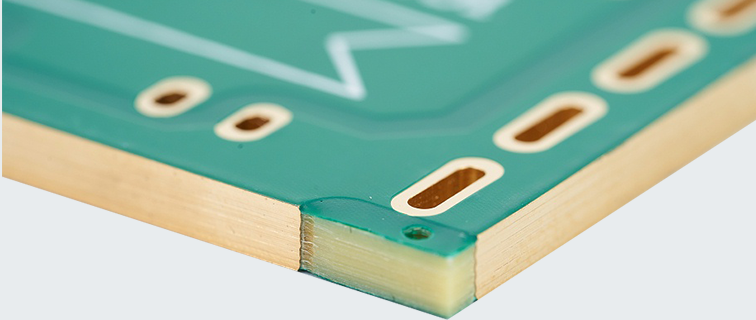

Metal Base PCB process capability

Copper substrate manufacturing capacity

Standard PCB HDi soft and hard combined with SMT thick copper

Maximum machining dimension (tolerance) 660x475mm

Thickness max/thinnest(tolerance):0.4-3.0mr

Minimum line width/line spacing (tolerance):0.2/0.2mm(8mil/8mil)

Minimum bore diameter (tolerance):0.3mm(boresize)/0.5mm(external diameter)

IPC standard:0.4-3.0mm

Metal Base PCB process capability

Copper substrate manufacturing capacity

Standard PCB HDi soft and hard combined with SMT thick copper

Maximum machining dimension (tolerance) 660x475mm

Thickness max/thinnest(tolerance):0.4-3.0mr

Minimum line width/line spacing (tolerance):0.2/0.2mm(8mil/8mil)

Minimum bore diameter (tolerance):0.3mm(boresize)/0.5mm(external diameter)

IPC standard:0.4-3.0mm

HDI process capability

1. Base Material: FR-4｜High Tg｜Halogen-free｜PTFE｜ Ceramic PCB｜ Polyimide

2. Board Type: PCB｜FPC｜R-FPC｜HDI

3. Hignest Layer: 64 Layer

4. Minimum base copper thickness: 1/3 OZ (12um)

5. Maximum finished copper thickness: 8 OZ

6. Minimum trace / gap (Inner layer): 2/2mil (H/H OZ base copper)

7. Maximum produce size: 609*889mm

8. Minimum trace / gap (Outer layer): 2/2mil (1/3 OZ base copper)

9. Minimum distance from hole to inner conductor: 6mil

10. Minimum distance from hole to outer conductor: 6mil

HDI process capability

1. Base Material: FR-4｜High Tg｜Halogen-free｜PTFE｜ Ceramic PCB｜ Polyimide

2. Board Type: PCB｜FPC｜R-FPC｜HDI

3. Hignest Layer: 64 Layer

4. Minimum base copper thickness: 1/3 OZ (12um)

5. Maximum finished copper thickness: 8 OZ

6. Minimum trace / gap (Inner layer): 2/2mil (H/H OZ base copper)

7. Maximum produce size: 609*889mm

8. Minimum trace / gap (Outer layer): 2/2mil (1/3 OZ base copper)

9. Minimum distance from hole to inner conductor: 6mil

10. Minimum distance from hole to outer conductor: 6mil

Flexible PCB Capability

Board Size: Min（pcs）: 1*0.5mm/Max (Pnl Size): 250*1200mm

Base Material Thickness: 0.06——0.3mm

Board Thickness: 0.1-0.5mm

Base Copper Thickness: 1/3OZ——2OZ

PTH Hole Wall Copper Thickness: 8-20μm

Blind Hole Filling Capacity Aspect Ratio (Hole Size: Hole Depth):

0.048611111

Blind Hole Filling Capacity (Hole Size): 50-150μm

Single Line Impedance Tolerance: ±10%

Differential Impedance Tolerance: ±10%

Min Track/Spacing (Double Layers Board): Surface Copper Thickness：8-14μm/40/40 um;Surface Copper Thickness：15-20μm/45/45 um;Surface Copper Thickness：21-30μm/55/55 um;Surface Copper Thickness：31-40μm/75/75 um;Surface Copper Thickness：≥40μm/80/80 um

Line Width Tolerance: Line Width≤0.050mm/±.02mm;0.05mm＜Line Width≤0.15mm/±20%;Line Width＞0.150mm/±10%

Flexible PCB Capability

Board Size: Min（pcs）: 1*0.5mm/Max (Pnl Size): 250*1200mm

Base Material Thickness: 0.06——0.3mm

Board Thickness: 0.1-0.5mm

Base Copper Thickness: 1/3OZ——2OZ

PTH Hole Wall Copper Thickness: 8-20μm

Blind Hole Filling Capacity Aspect Ratio (Hole Size: Hole Depth):

0.048611111

Blind Hole Filling Capacity (Hole Size): 50-150μm

Single Line Impedance Tolerance: ±10%

Differential Impedance Tolerance: ±10%

Line Width Tolerance: Line Width≤0.050mm/±.02mm;0.05mm＜Line Width≤0.15mm/±20%;Line Width＞0.150mm/±10%

Certifications

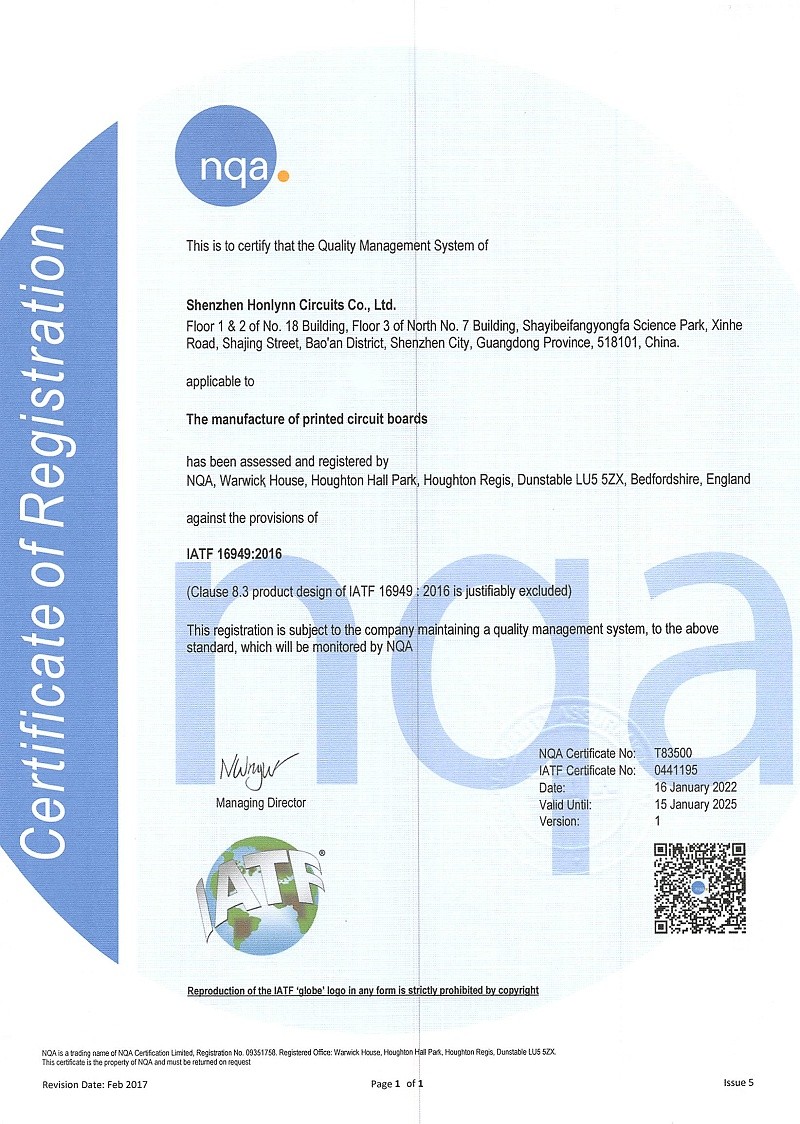

IATF16949 2016

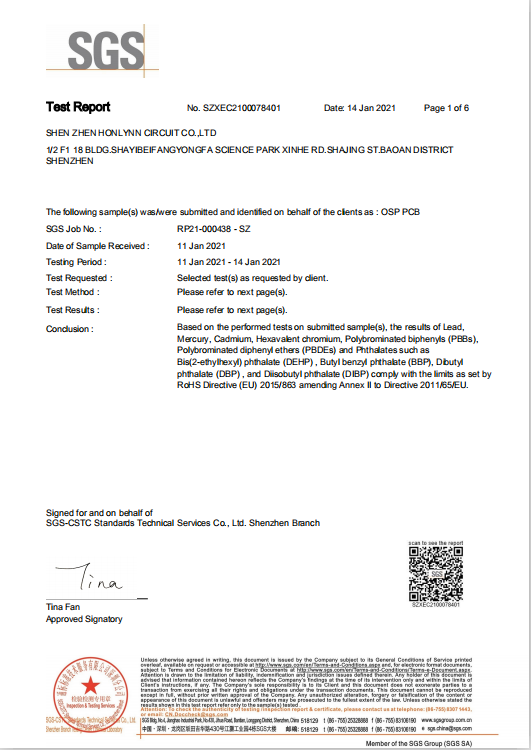

osp-rohs test report 2021

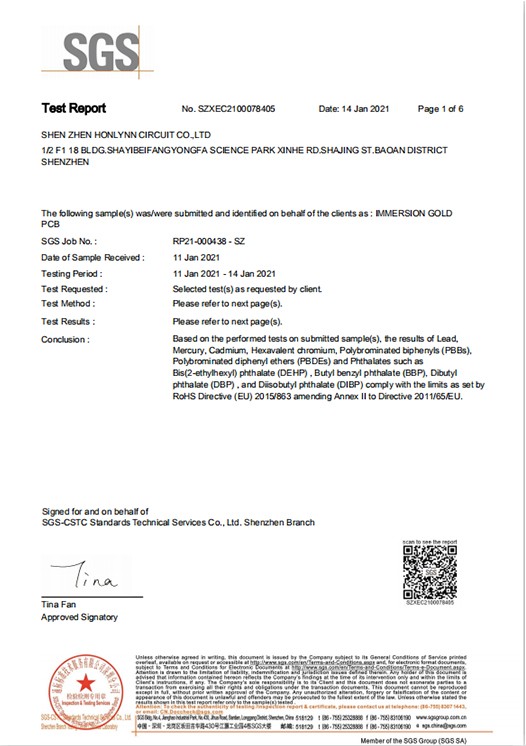

immersion gold-rohs test report 2021

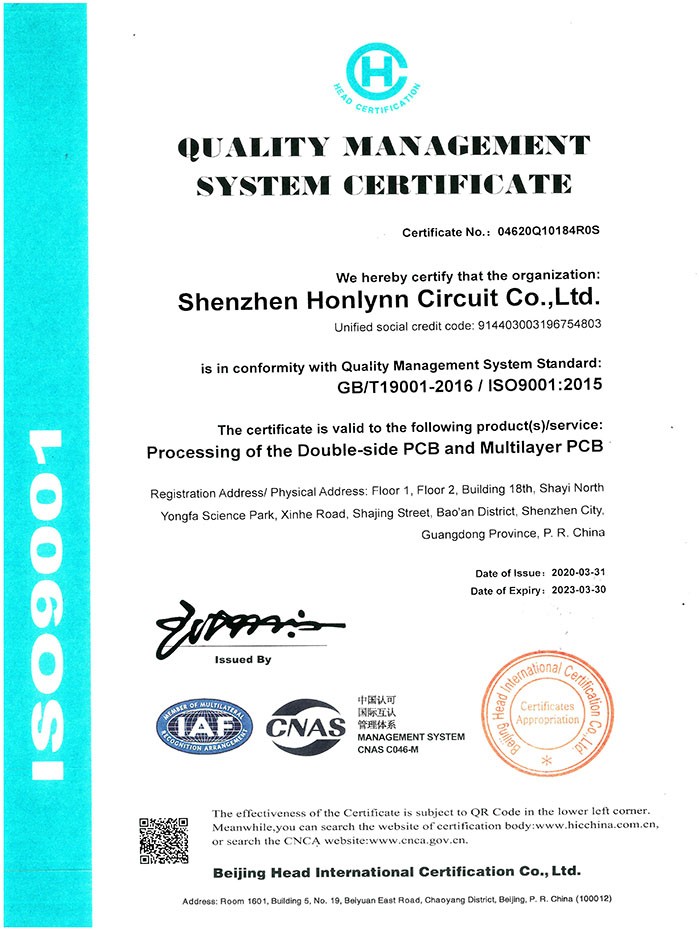

ISO-9001 certificate

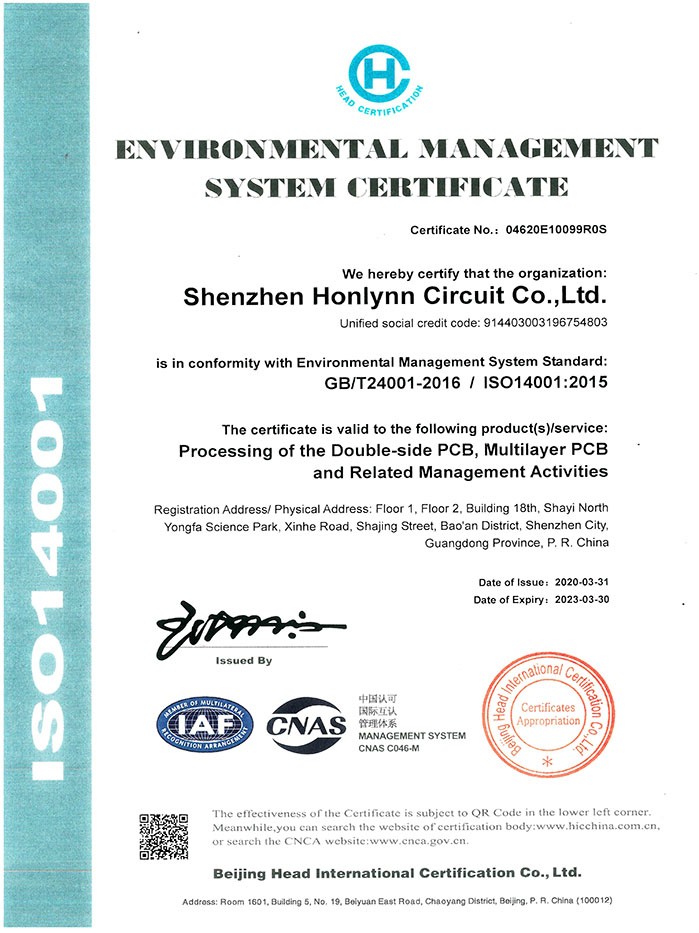

ISO-14001 certificate

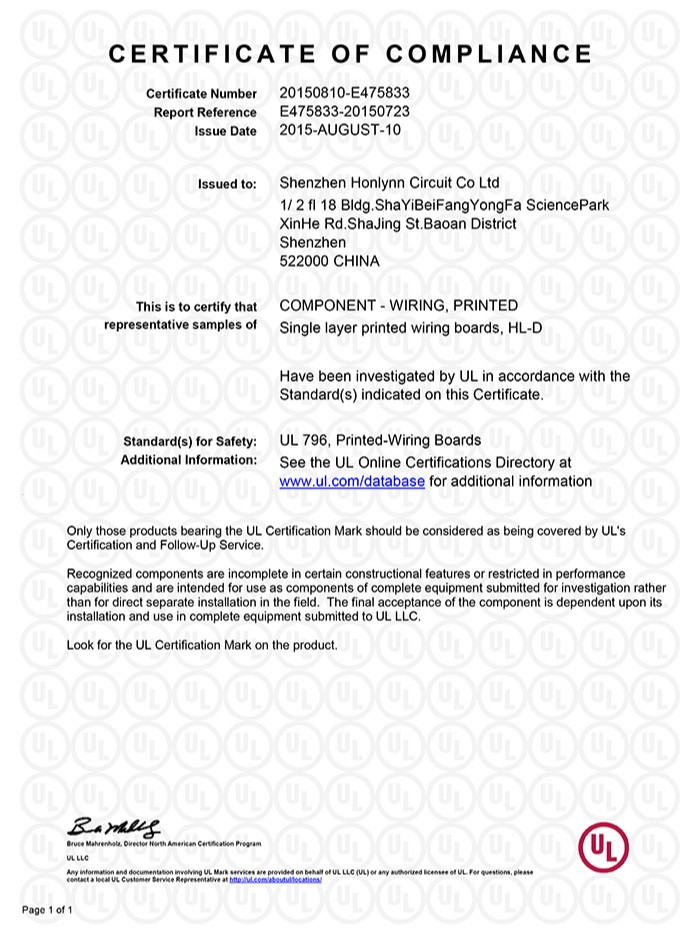

UL-D

UL-M

Industries We Serves

Honlynn regards customers as eternal partners and always develops the partnership. We only choose the customer with good credibility, not the field, because we can basically satisfy all the PCB in the electronics industr...

Medical care

Automobile

Signal communication

Consumption

Medical care

Medical care_COPY

Automobile_COPY

Signal communication_COPY

Consumption_COPY

Medical care_COPY
